Getting HP C7000 BladeSystem Started

| 0 comments

Well after picking up my HPC7000 Blade chassis with some nice components I finally made room in my computer room and got the chassis powered up. I also picked up some barebones Bl460 G7 blade servers I can get started on.

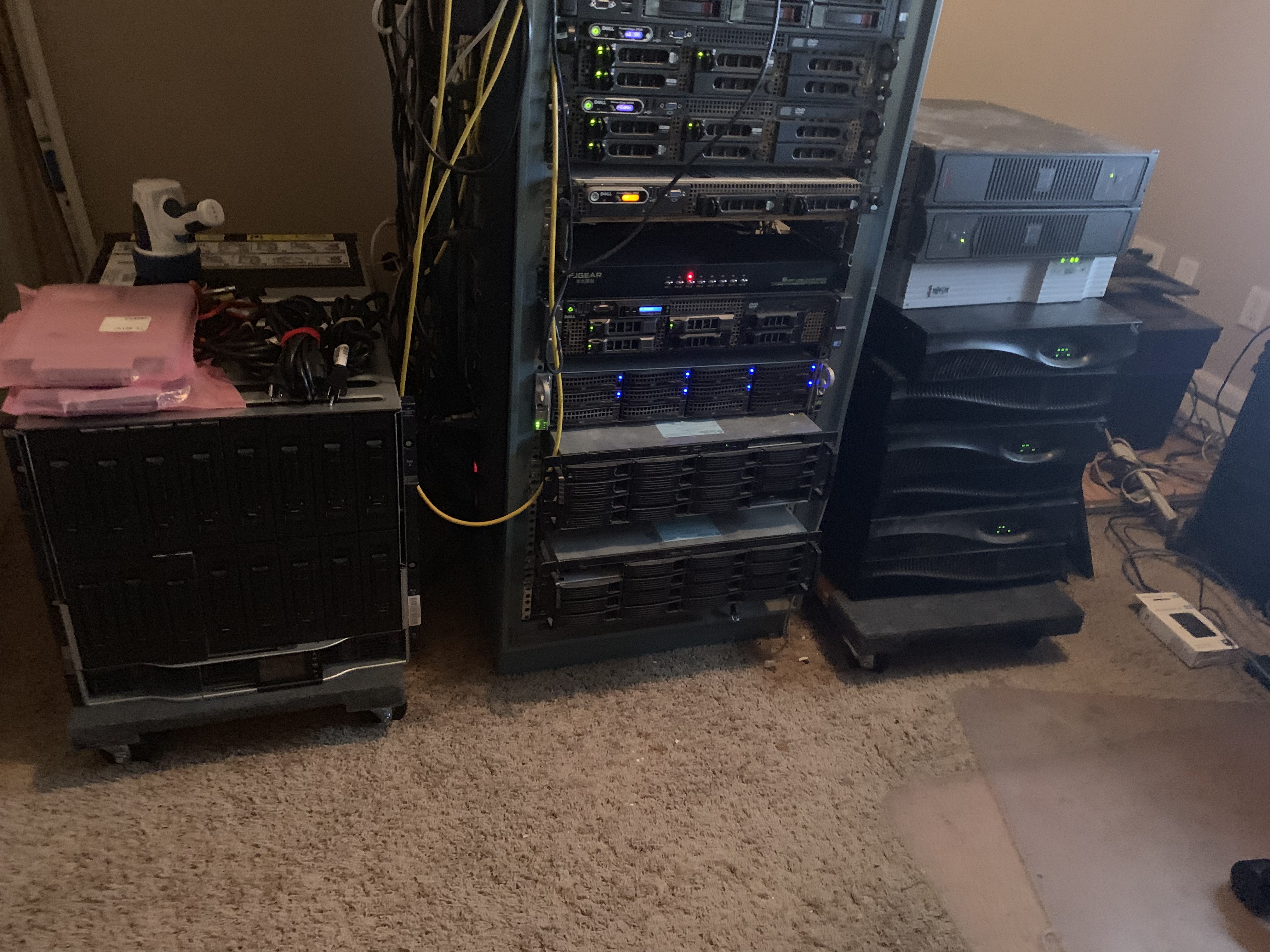

First as noted I needed to get the chassis together and in my computer room. First I put my main chassis on a four wheel heavy duty furniture dolly then snapped in the backplane and modules.

I then stacked all of my UPS on one side of my 19″ rack on another four wheel heavy duty furniture dolly. Then wheeled in the C7000 chassis.

Then my issue is I didn’t have the proper power cords so picked those up at the same place I got the barebone servers. Still I had a power issue as my power supplies only operate off of 200-240vac. Found some power supplies that work off of 100-120vac and I have power.

Now the LCD screen is locked so I cannot configure anything that way and I can’t guess the IP address of the HP OA(Onboard Administrator) for the C7000 chassis. I try resetting the OA but that does nothing.

Now I decide to serial into the OA and find my USB to serial cable but I need the female to female null modem adaptor. I know I have one but can’t find it. I head over to Frye’s to get a null modem cable.

Now I cannot login using my Windows laptop because Windows 10 no longer has HyperTerminal and cannot load proper drivers for my USB to serial cable.

Now thank goodness the null modem cable is long so I go connect it to my Linux workstation. Now it’s been the ’90’s since I did Linux or UNIX serial connections using Kermit and I’m having issues. Finally I get minicom command to work connect to the HP OA and reset my password and network information.

Just the baby steps and the technical commands and steps I’ll post later plus a few more pictures.
